Our Products Details

LS1414H

The 16.8 m Scissor Lift (350 kg capacity) is designed for applications that require extended working height, stable lifting, and safe access to elevated areas. It is suitable for industrial, maintenance, and installation work where reaching higher levels is critical.

On many job sites, working at greater heights can slow down operations and increase safety risks. This scissor lift provides a secure platform with controlled lifting and stable performance, helping complete tasks efficiently while maintaining safety standards.

LS1414H

Key Features of LS1414H

Applications

Why Choose LS1414H

Why Choose BMR Equipment India Pvt. Ltd.?

Specifications

Working Height & Capacity

Max Working Height 16.8 m
Max Platform Height 14.6 m
Rated Load Capacity 350 kg

Dimensions

Platform Size (L × W) 2.28 × 1.35 m
Overall Length 3.1 m
Overall Width 1.38 m
Overall Height (Rails Down) 1.97 m
Min Platform Height 1.66 m

Performance

Drive Speed (Stowed) 3.4 km/h
Drive Speed (Raised) 0.7 km/h
Turning Radius (Inside/Outside) 0.3 / 3.12 m
Maximum Gradeability 25%

Battery & Power

Lift Motor 24V / 3.3 kW
Battery Capacity 24V / 270Ah
Charger 24V / 30A

Tires & Weight

Tire Size 381 × 127 mm (Solid, Non-marking)
Total Weight 3,700 kg

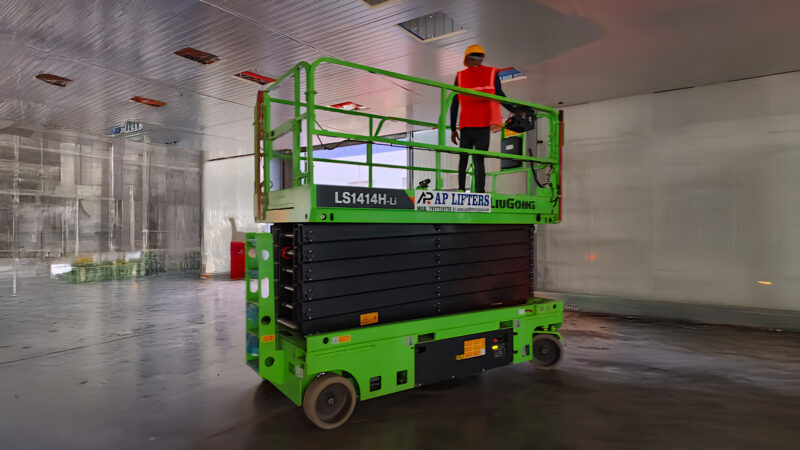

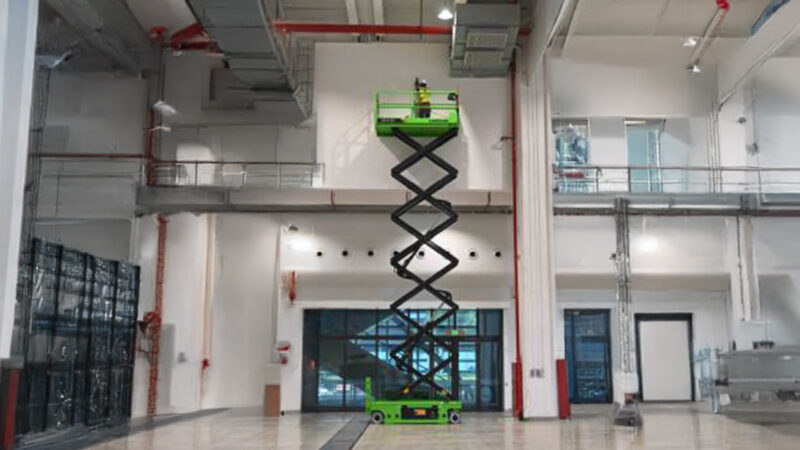

Gallery

Gallery Image
Gallery Image
Gallery Image
Gallery Image
Gallery Image
Gallery Image
