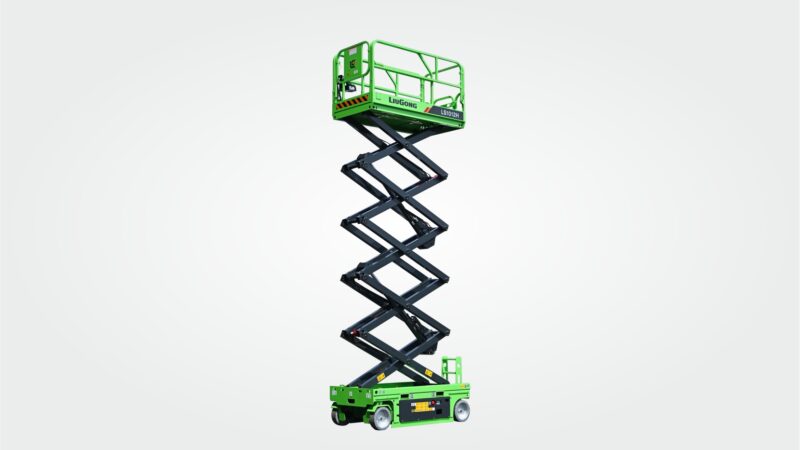

LS1012H

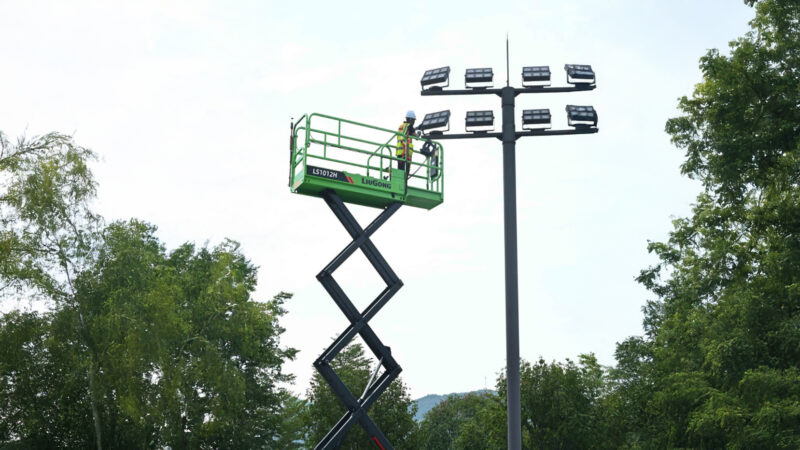

The 12 m Scissor Lift (350 kg capacity) is designed for tasks that require higher reach, stable lifting, and safe working at height. It is suitable for maintenance, installation, and industrial applications where access to elevated areas is required.

On many sites, reaching higher working areas safely can slow down work when using ladders or temporary setups. This scissor lift provides a stable platform with controlled lifting, helping complete tasks efficiently while reducing safety risks.

LS1012H

Key Features of LS1012H

Applications

Why Choose LS1012H

Why Choose BMR Equipment India Pvt. Ltd.?

Specifications

Working Height & Capacity

Max Working Height 12 m
Max Platform Height 10 m
Rated Load Capacity 350 kg

Dimensions

Platform Size (L × W) 2.28 × 1.15 m
Overall Length 2.49 m
Overall Width (Transport) 1.19 m
Overall Height (Rails Down) 1.93 m
Min Platform Height 1.39 m

Performance

Drive Speed (Stowed) 2 km/h
Drive Speed (Raised) 0.4 km/h
Turning Radius (Inside/Outside) 0.24 / 2.39 m
Maximum Gradeability 25%

Battery & Power

Lift Motor 24V / 3.3 kW
Battery Capacity 24V / 225Ah
Charger 24V / 30A

Tires & Weight

Tire Size 381 × 127 mm (Solid, Non-marking)
Total Weight 2,820 kg
