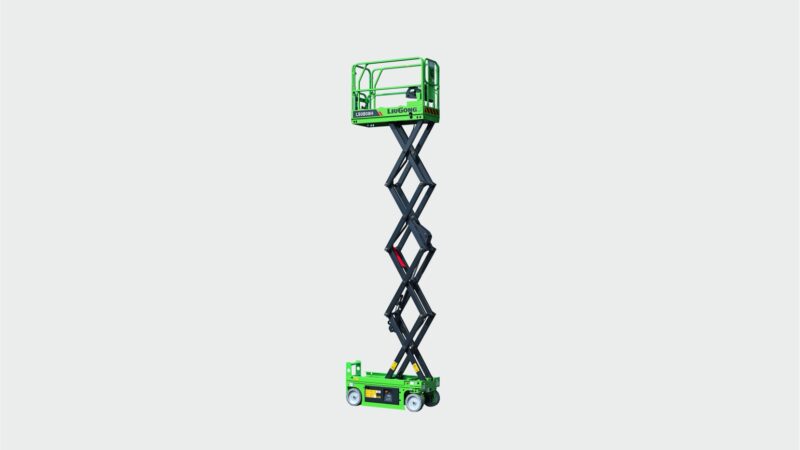

LS0808H

The 10.8 m Scissor Lift is designed for tasks that require higher reach, stability, and safe working at height. It is suitable for maintenance, installation, and industrial applications where working above standard heights is necessary.

On many sites, accessing higher areas safely becomes a challenge with ladders or temporary platforms. This scissor lift provides a secure and stable platform with controlled lifting, helping complete work efficiently while reducing safety risks.

Key Features of LS0808H

Higher working height for extended reach applications
Stable platform for safe elevated work
Battery-powered operation for low noise and zero emissions
Smooth control for precise lifting and positioning
Compact design for easy movement in work areas

Applications

Maintenance and repair work at height
Electrical and installation projects
Warehouse and industrial operations
Facility management and commercial work

Why Choose LS0808H

This machine is ideal for users who need a reliable lifting solution for higher working areas. It improves safety, reduces manual effort, and helps complete tasks more efficiently.

Why Choose BMR Equipment India Pvt. Ltd.?

Reliable equipment with service support
Assistance in selecting the right lifting solution
Spare parts and maintenance availability
Options for purchase and rental

Specifications

Working Height & Capacity

Max Working Height 10.8 m

Max Platform Height 8.6 m

Rated Load Capacity 230 kg

Dimensions

Platform Size (L × W) 2.28 × 0.81 m

Overall Length 2.5 m

Overall Width (Transport) 0.85 m

Overall Height (Rails Down) 1.8 m

Min Platform Height 1.22 m

Performance

Drive Speed (Stowed) 2 km/h

Drive Speed (Raised) 0.4 km/h

Turning Radius (Inside/Outside) 0.24 / 2.2 m

Maximum Gradeability 25%

Battery & Power

Lift Motor 24V / 3.3 kW

Battery Capacity 24V / 225Ah

Charger 24V / 30A

Tires & Weight

Tire Size 381 × 127 mm (Solid, Non-marking)

Total Weight 2,180 kg
