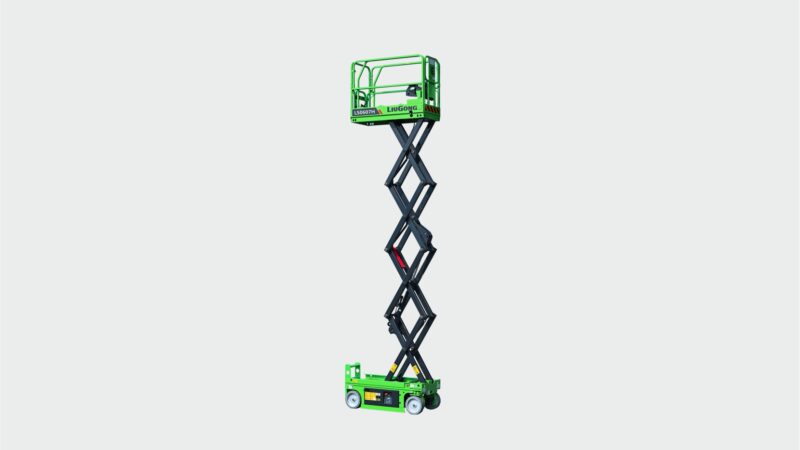

LS0607H

The 7.8 m Scissor Lift is designed for tasks that require safe, stable, and efficient access at height. It is suitable for indoor and semi-outdoor work where precision, safety, and easy movement are important.

On many job sites, using ladders or temporary platforms can be unsafe and time-consuming. This scissor lift provides a secure working platform with controlled lifting, helping complete tasks faster while maintaining safety standards.

LS0607H

Key Features of LS0607H

Applications

Why Choose LS0607H

Why Choose BMR Equipment India Pvt. Ltd.?

Specifications

Working Height & Capacity

Max Working Height 7.8 m
Max Platform Height 5.8 m
Rated Load Capacity 230 kg

Dimensions

Platform Size (L × W) 1.64 × 0.75 m
Overall Length 1.85 m
Overall Width (Transport) 0.78 m
Overall Height (Rails Down) 1.72 m
Min Platform Height 0.95 m

Performance

Drive Speed (Stowed) 2 km/h
Drive Speed (Raised) 0.3 km/h
Turning Radius (Inside/Outside) 0.3 / 1.78 m
Maximum Gradeability 30%

Battery & Power

Lift Motor 24V / 3.3 kW
Battery Capacity 24V / 200Ah
Charger 24V / 30A

Tires & Weight

Tire Size 356 × 114 mm (Solid, Non-marking)
Total Weight 1,520 kg

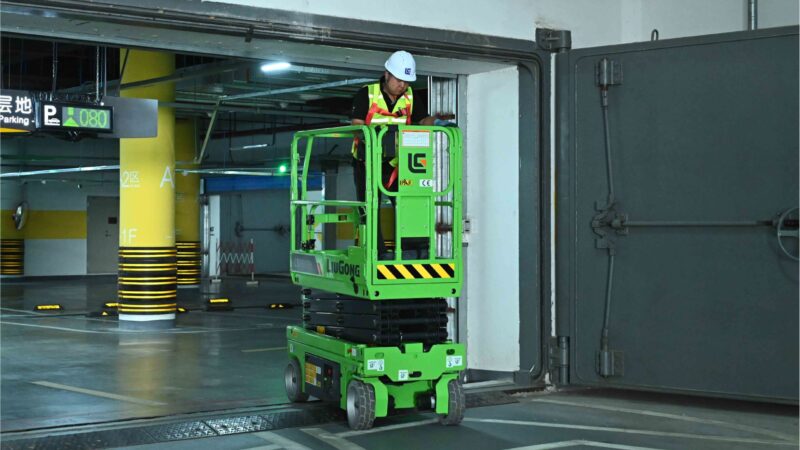

Gallery
