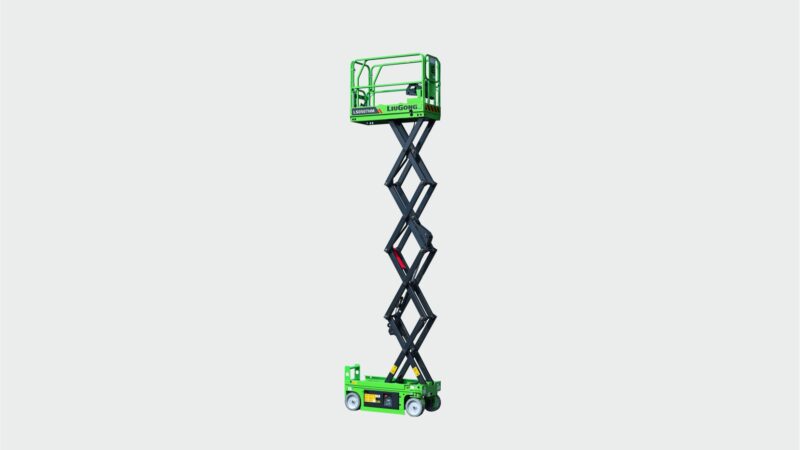

LS0507HM

The 6.5 m Scissor Lift is designed for tasks that require safe vertical access, stability, and easy operation. It is suitable for indoor maintenance, installation work, and facility management where ladders or scaffolding are not practical.

In many situations, working at height can be unsafe or inefficient with manual methods. This scissor lift provides a stable platform, controlled lifting, and easy mobility, helping complete work safely and efficiently.

Key Features of LS0507HM

Compact design for working in tight indoor spaces
Stable platform for safe elevated operations
Smooth lifting system for controlled movement
Battery-powered operation for low noise and zero emissions
Easy maneuverability with small turning radius

Applications

Indoor maintenance and repair work
Electrical and installation tasks
Warehouse and facility management
Commercial and industrial operations

Why Choose LS0507HM

This machine is ideal for users who need a compact and safe lifting solution for working at height. It improves safety, reduces manual effort, and allows efficient completion of tasks.

Why Choose BMR Equipment India Pvt. Ltd.?

Reliable equipment with service support
Assistance in selecting the right lifting solution
Spare parts and maintenance availability
Options for purchase and rental

Specifications

Working Height & Capacity

Max Working Height 6.5 m

Max Platform Height 4.5 m

Rated Load Capacity 240 kg

Dimensions

Platform Size (L × W) 1.3 × 0.72 m

Overall Length 1.49 m

Overall Width (Transport) 1.85 m

Overall Height (Rails Down) 1.67 m

Min Platform Height 0.95 m

Performance

Drive Speed (Stowed) 1.5 km/h

Drive Speed (Raised) 0.3 km/h

Turning Radius (Inside/Outside) 0.25 / 1.6 m

Maximum Gradeability 25%

Battery & Power

Lift Motor 24V / 3.3 kW

Battery Capacity 24V / 100Ah

Charger 24V / 15A

Tires & Weight

Tire Size 305 × 100 mm (Solid, Non-marking)

Total Weight 950 kg
