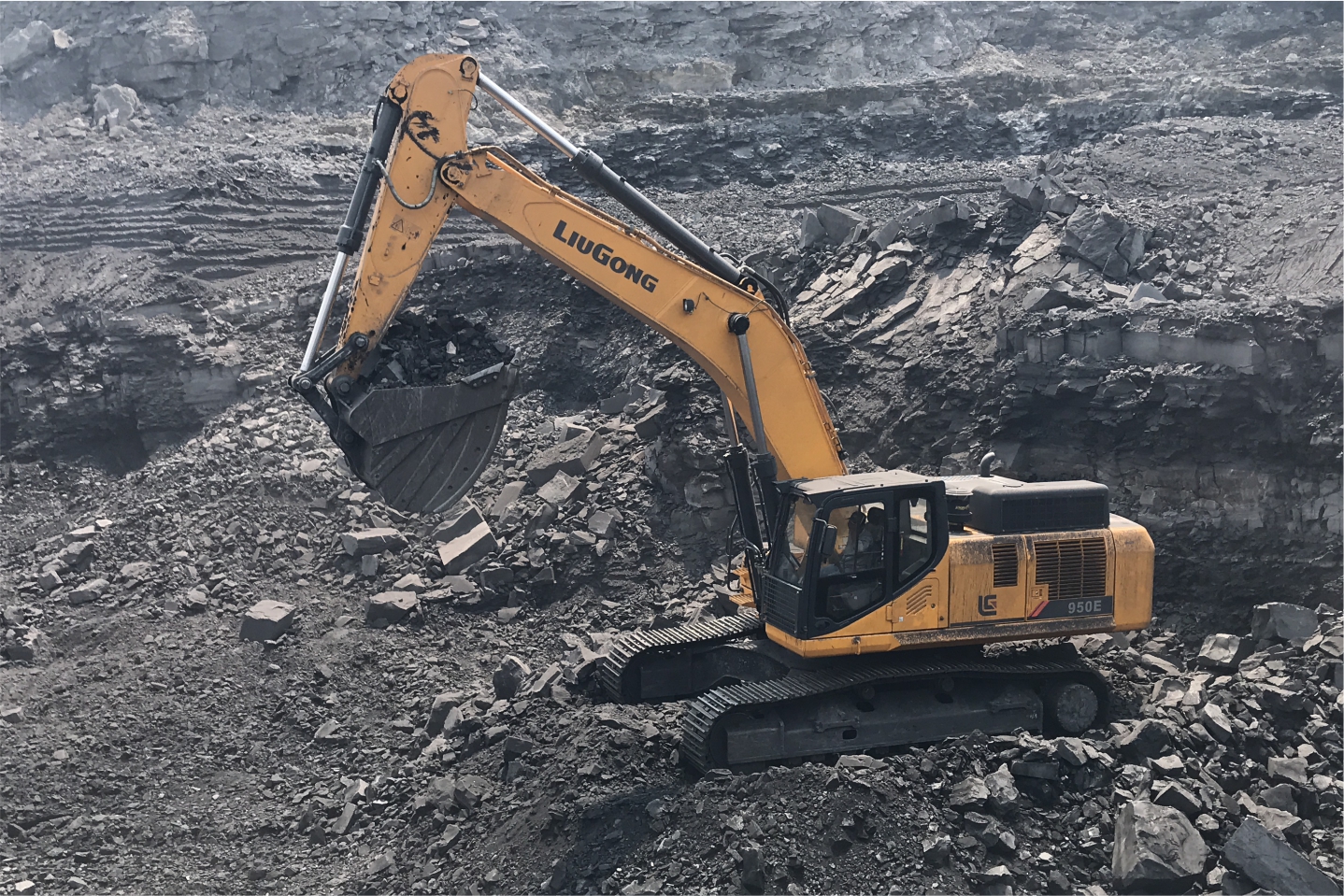

950E

The 950E Hydraulic Excavator is designed for large-scale mining and heavy construction projects where maximum output, high digging force, and continuous performance under extreme load are required. It is suitable for operations involving bulk material handling and long working cycles.

On demanding sites, standard machines often struggle with productivity, fuel efficiency, or durability under load. The 950E is built to overcome these challenges with high engine power, strong hydraulic performance, and a heavy-duty structure, ensuring consistent output even in extreme conditions.

950E

Key Features of 950E

Applications

Why Choose 950E

Why Choose BMR Equipment India Pvt. Ltd.?

Specifications

General Specifications

Operating Weight 48,300 kg
Bucket Capacity (HD) 2.6 m³
Bucket Capacity (GP) 3.2 m³
Rated Power 375 hp @ 2,000 rpm

Performance

Arm Digging Force 255 kN | 270 kN
Bucket Digging Force 265 kN | 280 kN

Engine

Model Cummins QSM11
Rated Power 375 hp @ 2,000 rpm
Peak Torque 1898 N.m @ 1,400 rpm

Dimensions

Shipping Length 11,515 mm
Shipping Width 3,180 mm
Shipping Height 3,810 mm
Track Shoe Width 600 mm

Hydraulic System

Maximum Flow 2 × 380 L/min
System Pressure 34.3 / 37.3 MPa

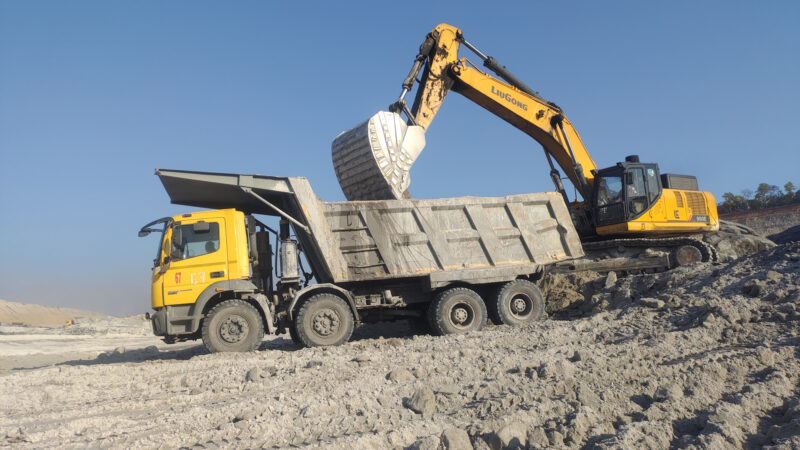

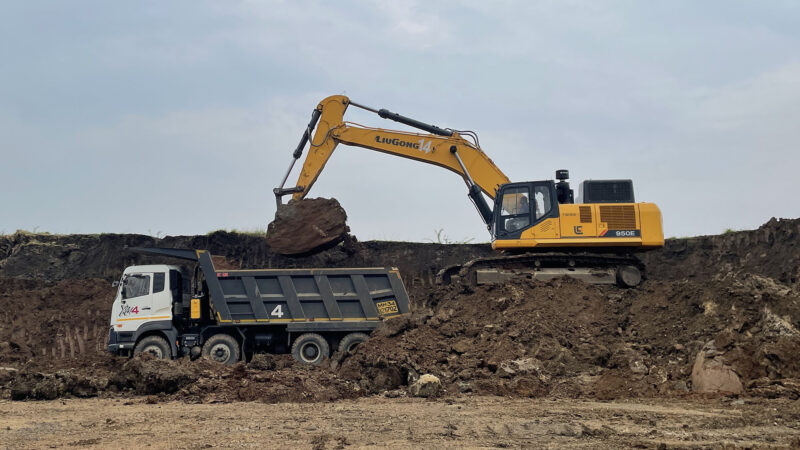

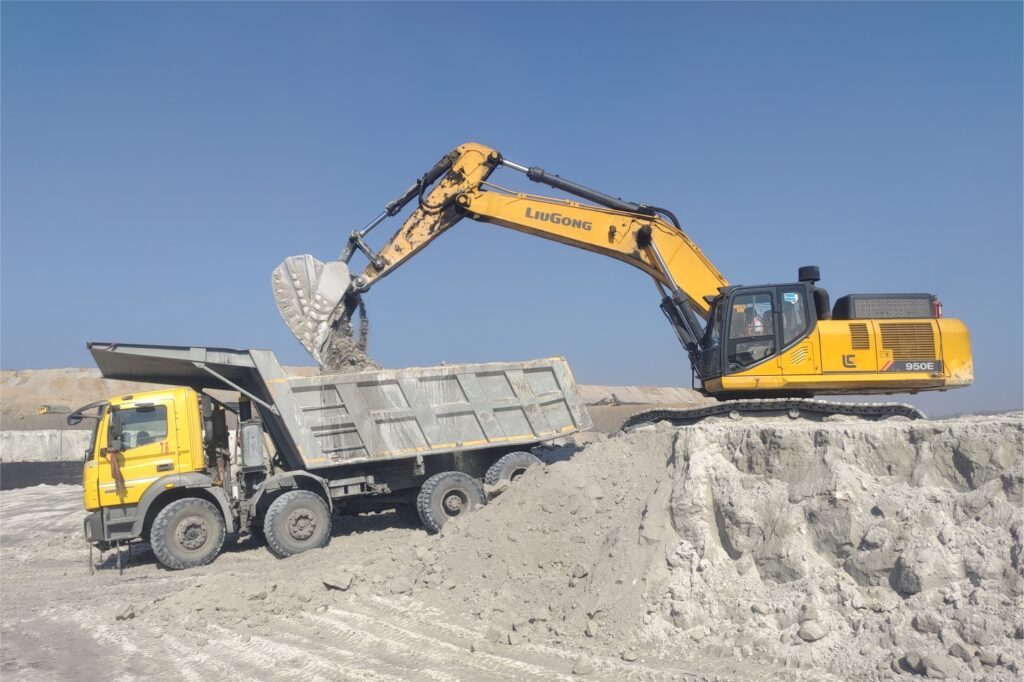

Gallery
