Our Products Details

935E HD

The 935E HD Hydraulic Excavator is built for large-scale construction and mining operations where maximum output, higher digging force, and continuous performance are critical. It is suitable for contractors handling high-volume excavation and material movement on demanding job sites.

In heavy-duty applications, machines often face performance issues under extreme load or long working hours. The 935E HD is designed to handle such conditions with high engine power, strong hydraulic performance, and a durable structure, ensuring consistent productivity with minimal interruptions.

935E HD

Key Features of 935E HD

Applications

Why Choose 935E HD

Why Choose BMR Equipment India Pvt. Ltd.?

Specifications

General Specifications

Operating Weight 33,600 kg
Bucket Capacity (HD) 1.6 m³
Bucket Capacity (GP) 1.9 m³
Rated Power 227 hp @ 2,050 rpm

Performance

Arm Digging Force 187 / 203 kN
Bucket Digging Force 152 kN / 165 kN

Engine

Model Cummins QSB7
Rated Power 227 hp @ 2,050 rpm
Peak Torque 895 N.m @ 1,300 rpm

Dimensions

Shipping Length 10,650 mm
Shipping Width 3,190 mm
Shipping Height 3,175 mm
Track Shoe Width 600 mm

Hydraulic System

Main Pump Flow 2 × 266 L/min
System Pressure 34.3 / 37.3 MPa

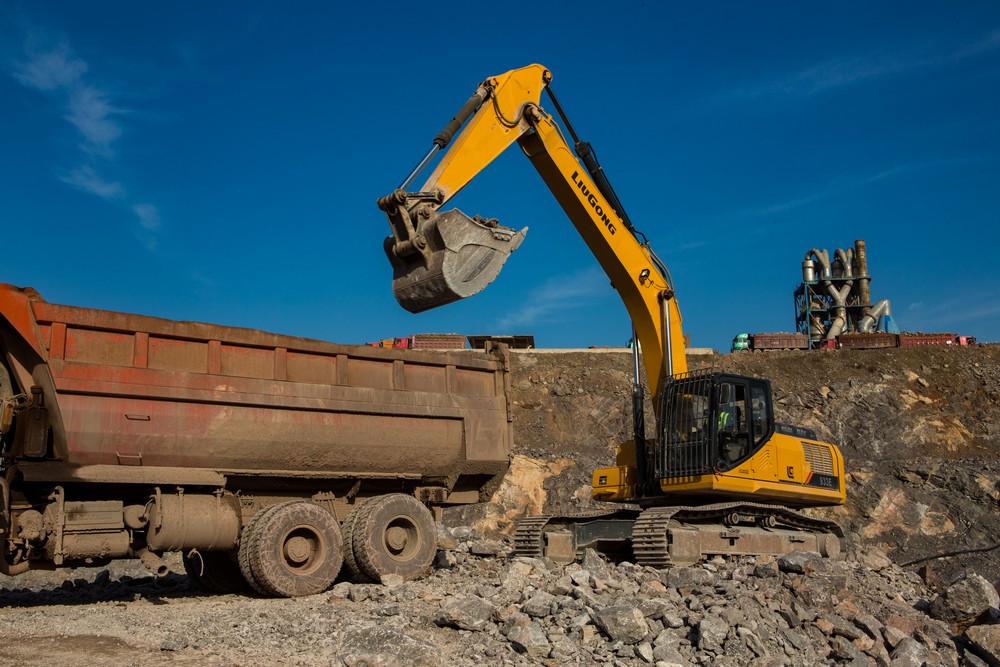

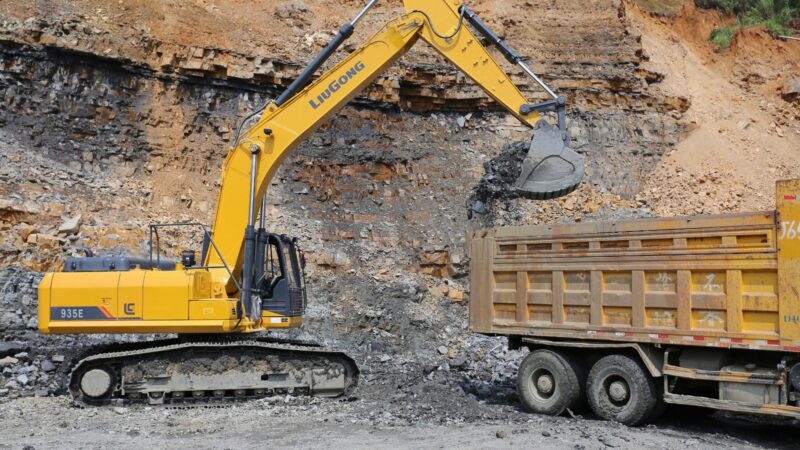

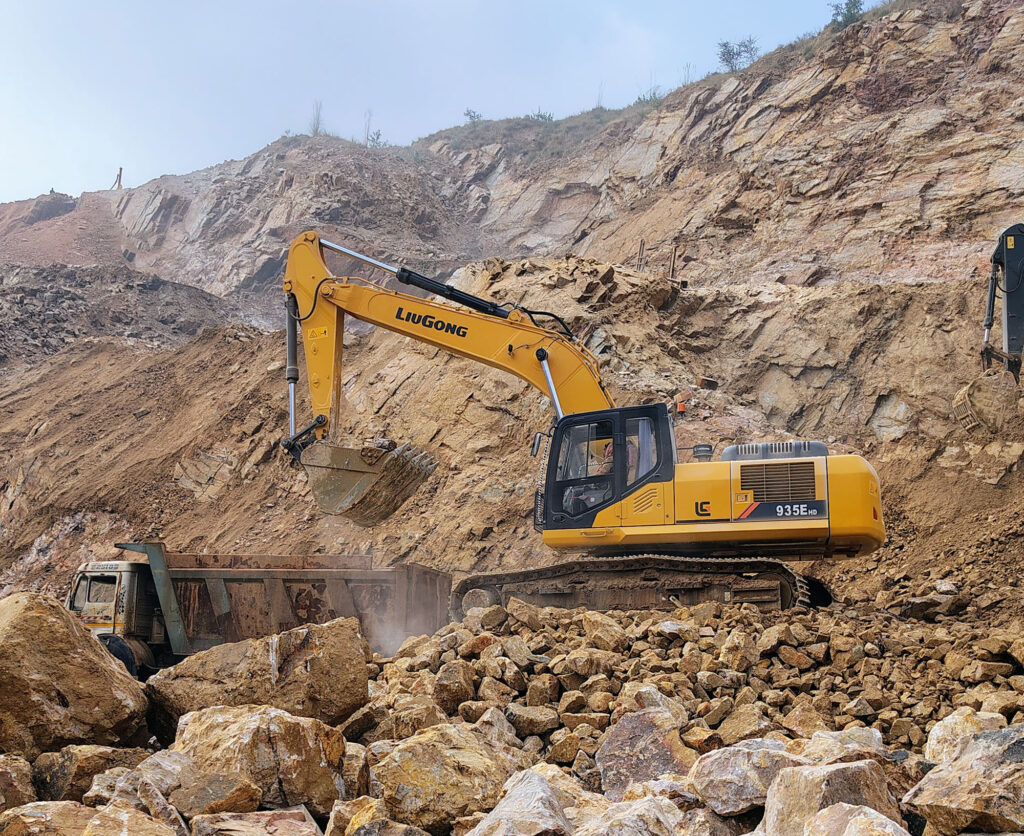

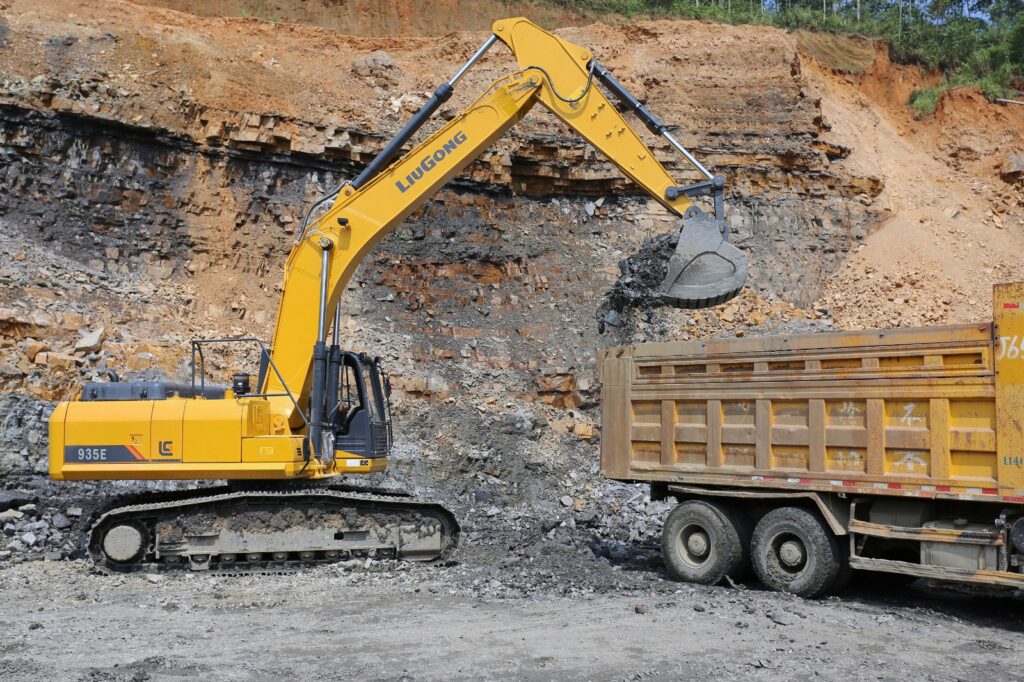

Gallery

Gallery Image
Gallery Image
Gallery Image
Gallery Image
Gallery Image
Gallery Image
